Horizontal Injection Moulding Machine (H Series)
The H Series is a range of horizontal plastic injection moulding machines from Pratishna Engineers, built for household articles and larger plastic parts. The series spans 120 to 350 tons across six models, with large shot weights, wide tie-bar spacing and big platens, so buckets, tubs, storage boxes, casseroles, trays and baskets can be moulded with large moulds and full shots.
Pratishna Engineers is one of the top and trusted household articles injection moulding machine manufacturers in India. Headquartered in Mumbai, Pratishna has 35+ years of experience and more than 9,000 machines supplied to over 1,000 customers, offering the H Series for houseware, kitchenware, storage and larger industrial parts, backed by in-house engineering and after-sales support.
Across the range, screw diameters run from 40 to 70 mm, shot weights from 198 to 969 g (PS) and injection rates up to 339 cc/sec, with daylight openings from 850 to 1,185 mm, tie-bar spacing up to 710 × 710 mm, platens up to 1,030 × 1,050 mm and ejector strokes up to 180 mm. Select a model by part size, projected area, shot weight, mould height and output.
- Clamping force
- 120 – 350 T
- Models
- 6
- Shot weight
- Smaller
Need Help Selecting an H Series Machine?
Contact Pratishna Engineers to discuss your household or large-part requirements and request H Series specifications, application guidance and a quotation.
H Series Horizontal Injection Moulding Machines by Tonnage
The Pratishna H Series is available in six clamping-force options: 120, 150, 180, 220, 260 and 350 tons, most with two screw options. Smaller models suit mugs, bowls, lunch boxes and small containers, while larger models suit buckets, tubs, storage boxes, casseroles and large trays.
- 120 TonH-120Screw optionsØ40Shot weight198 gView specs →
- 150 TonH-150Screw optionsØ45 · Ø50Shot weight286 – 353 gView specs →
- 180 TonH-180Screw optionsØ50 · Ø55Shot weight389 – 470 gView specs →
- 220 TonH-220Screw optionsØ55 · Ø60Shot weight513 – 610 gView specs →
- 260 TonH-260Screw optionsØ60 · Ø65Shot weight661 – 776 gView specs →
- 350 TonH-350Screw optionsØ65 · Ø70Shot weight836 – 969 gView specs →
H Series specifications by model
Screw diameter and shot weight are shown for each injection unit option on that model.
Locking unit | H-120 | H-150 | H-180 | H-220 | H-260 | H-350 | |
|---|---|---|---|---|---|---|---|
| Specification | Unit | ||||||
| Mould clamping force | Tons | 120 | 150 | 180 | 225 | 250 | 320 |
| Space between tie bars (H × V) | mm | 440 × 428 | 460 × 449 | 510 × 498 | 580 × 560 | 640 × 632 | 710 × 710 |
Injection unit | H-120 | H-150 | H-180 | H-220 | H-260 | H-350 | |
|---|---|---|---|---|---|---|---|
| Specification | Unit | ||||||
| Screw diameter | mm | 40 | 45 / 50 | 50 / 55 | 55 / 60 | 60 / 65 | 65 / 70 |
| Max. shot weight (PS) | g | 198 | 286 / 353 | 389 / 470 | 513 / 610 | 661 / 776 | 836 / 969 |
General | H-120 | H-150 | H-180 | H-220 | H-260 | H-350 | |
|---|---|---|---|---|---|---|---|
| Specification | Unit | ||||||
| Total connected load | kW | 21.5 | 29.5 | 36.6 | 45.4 | 56.2 | 71.1 |
Looking for the Right Injection Moulding Machine?
Tell us your production requirements and get a suitable Pratishna machine recommendation.
Why Choose Pratishna Engineers?
- Application-Based Machine Selection
- In-House Engineering & Manufacturing
- Multiple Machine Series
- Production-Focused Solutions
- End-to-End Technical Support
- Industry-Specific Solutions
- Machine Lifecycle Support
About Pratishna Engineers: Injection Moulding Machine Manufacturer in India
Pratishna Engineers Limited is a Mumbai-based manufacturer of plastic injection moulding machines in India, with 35+ years of machine-building experience. The company has in-house capabilities for machine design, manufacturing, assembly, testing and service, providing injection moulding solutions for different plastic processing requirements.
Pratishna Engineers manufactures horizontal, PET, special purpose, two-platen (PHM Series), hybrid and vertical injection moulding machines. Machines are configured according to the plastic component, mould, material, production volume and application requirements.
With 9,000+ machines supplied to 1,000+ customers, Pratishna Engineers serves manufacturers across automotive, packaging, electrical and electronics, medical, consumer products, agriculture and industrial applications in India and international markets.
- 9,000+
- Machines Supplied
- 1,000+
- Customers
- 35+
- Years of Engineering
- 25,000sq. ft.
- Manufacturing Facility
More About Horizontal Injection Moulding Machines
What Is a Horizontal Injection Moulding Machine?
A horizontal injection moulding machine is a type of injection moulding equipment in which the injection unit and mould are arranged along a horizontal axis.
Read More: What Is a Horizontal Injection Moulding Machine?
How Does a Horizontal Injection Moulding Machine Work?
In a horizontal machine, the injection unit and clamping unit sit along a horizontal axis. The mould mounts vertically on the platens, and finished parts are ejected and drop clear of the mould.
Read More: How Does a Horizontal Injection Moulding Machine Work?
Horizontal vs Vertical Injection Moulding Machines: Key Differences
The difference is the axis on which the clamp acts, and it changes what each machine is good at.
Read More: Horizontal vs Vertical Injection Moulding Machines: Key Differences
Important Specifications to Consider Before Buying a Horizontal Injection Moulding Machine
Choosing a horizontal injection moulding machine should be based on the component and moulding process rather than machine tonnage alone.
Read More: Important Specifications to Consider Before Buying a Horizontal Injection Moulding Machine
Applications of Horizontal Injection Moulding Machines
Horizontal machines cover the large majority of injection-moulded components, including household items, packaging, electrical parts, automotive components, agricultural and irrigation parts and general engineering components.
Read More: Applications of Horizontal Injection Moulding Machines
Injection Moulding Machine Buyer Resources
Download practical resources to help you select, size and specify the right machine.
- Image to be provided by client
H Series Catalogue
The H Series household articles range from 120 to 350 tons, with model and screw options, main features and applications.
H Series Specification Sheet
Actual Pratishna H Series data for every model and screw option: screw diameter, shot weight, injection pressure and rate, clamping force and stroke, mould thickness, daylight, tie-bar space, platen size, ejector, motor power, weight and floor space.
Injection Moulding Machine Selection Guide
A step-by-step guide covering the key inputs needed to select the right machine: product weight, projected area, number of cavities, plastic material, required clamping force, shot / injection capacity, mould dimensions, production quantity, cycle time and automation requirement.
Download PDFPDF · 265 KB
FAQs / Buyer Questions
The answers our engineers give most often, before an H Series specification is agreed.
What Is the Pratishna H Series Horizontal Injection Moulding Machine?
The H Series is Pratishna’s range of horizontal injection moulding machines for household articles and larger parts, available from 120 to 350 tons across six models.What Makes a Machine Suitable for Household Articles?
Household articles are large but light parts with big projected areas and deep moulds, so they need large shot weights, wide tie-bar spacing, big platens and long opening and ejector strokes. The H Series offers shot weights up to 969 g (PS), tie-bar spacing up to 710 × 710 mm and ejector strokes up to 180 mm.Which Products Are Made on H Series Machines?
Buckets, tubs, mugs, storage boxes, casseroles and thermoware, lunch boxes, baskets, trays, bowls, dustpans, hangers, bathroom accessories and larger industrial parts.Which H Series Model Is Suitable for My Product?
The model depends on part size, projected area, shot weight, mould dimensions and height, cavities and output. Share your product and mould details and Pratishna Engineers will recommend a model.
What If My Part Is Too Large for the H Series?
Larger buckets, storage boxes, dustbins, crates and stools that need more opening stroke or clamping force suit the PHM Series two-platen machines from 160 to 350 tons.What Plastic Materials Can the H Series Process?
Depending on the machine configuration, the H Series can process thermoplastics such as PP, PE, ABS, PS, nylon, PC, POM and other engineering plastics. Material-specific screw and barrel requirements should be evaluated before selection. Most household articles use PP copolymer, HDPE, SAN or ABS, often with recycled content.What Is the Difference Between the H, E and C Series?
The H Series (120 to 350 tons) is built for household articles and larger parts. The E Series (75 to 180 tons) suits small and medium parts, and the C Series (140 to 320 tons) is built for container making and thin-wall packaging.Does Pratishna Provide Installation and Support for H Series Machines?
Yes. Pratishna Engineers provides installation, commissioning, operator training and after-sales technical support, along with spare parts, as part of its machine lifecycle services.
Related Blogs, Guides & Articles

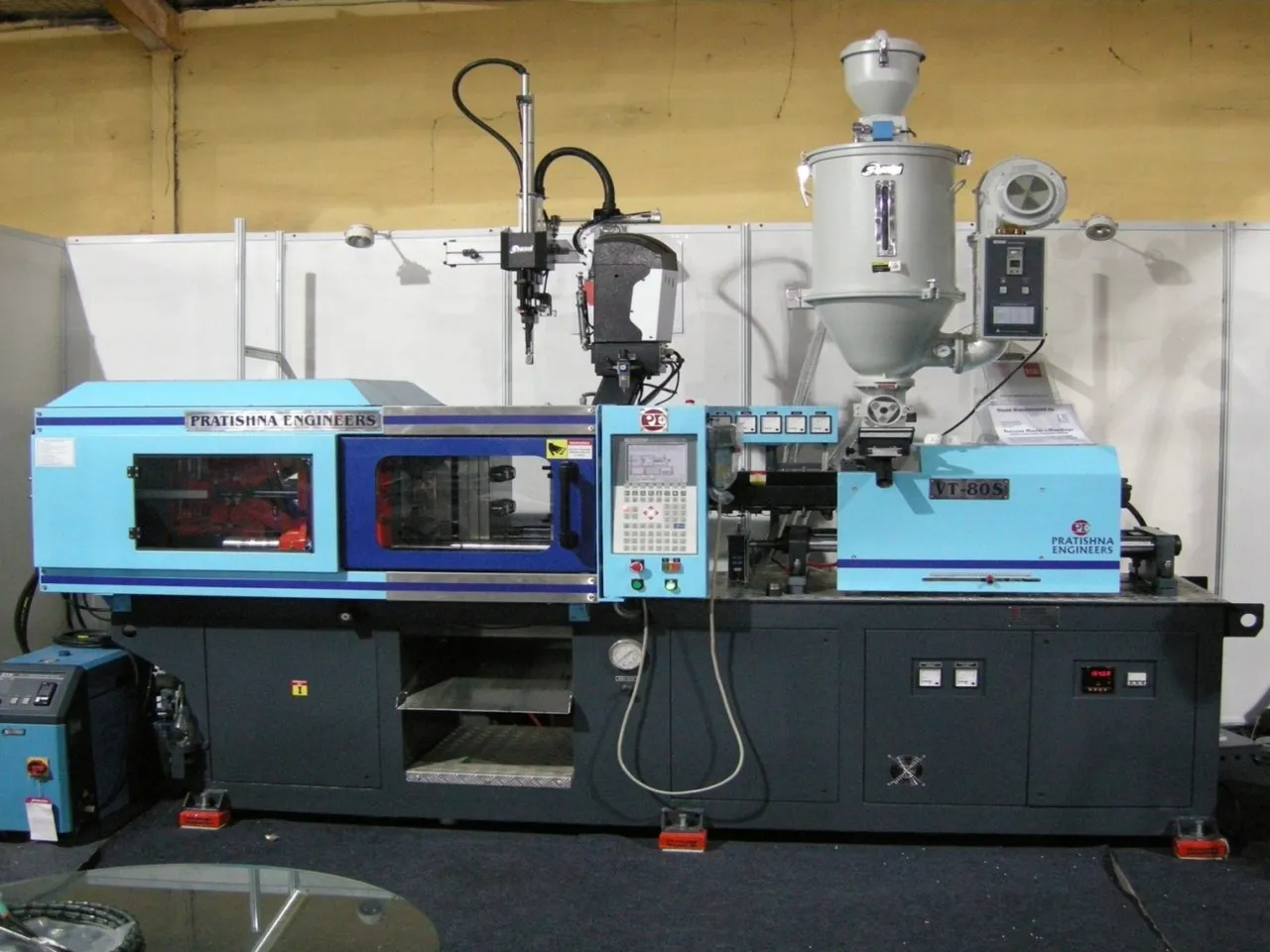

Bucket and Tub Making Machine Guide: Buckets, Tubs and Storage Boxes
