100 Ton Horizontal Injection Moulding Machine (E Series)
The E Series 100 Ton is a horizontal plastic injection moulding machine from Pratishna Engineers, built for small and medium components such as electrical accessories, fittings, cosmetic and household parts. It offers two screw options from 32 to 35 mm, shot weights from 126 to 151 g (PS) and a 700 mm daylight opening, with the injection unit, clamp, hydraulics and controls matched to the machine size.
Pratishna Engineers is one of the top and trusted 100 ton injection moulding machine manufacturers in India. Based in Mumbai, the company brings 35+ years of machine-building experience and has supplied 9,000+ machines to 1,000+ customers, offering the E Series 100 Ton in two screw configurations, backed by in-house engineering and after-sales support.
- Clamping force
- 100 T
- Screw options
- Ø32 · Ø35
- Shot weight
- 126 – 151 g
Need Help Selecting an E Series 100 Ton Machine?
Contact Pratishna Engineers to discuss your plastic injection moulding requirements and request E Series 100 ton specifications, application guidance and a quotation.
E Series 100 Ton Specifications
The E Series 100 Ton is available in two screw configurations: A (Ø32 mm) and B (Ø35 mm). Injection unit values vary by screw; clamping, ejector and general specifications are common to all. Specifications are subject to change in line with continuous product development.
Injection unit | Option A | Option B | |
|---|---|---|---|
| Specification | Unit | 32 mm | 35 mm |
| Screw diameter | mm | 32 | 35 |
| Screw L/D ratio | — | 20:1 | 19:1 |
| Max. swept volume | cm³ | 140 | 168 |
| Max. shot weight (PS) | g | 126 | 151 |
| Max. injection pressure | kg/cm² | 2010 | 1680 |
| Rate of injection | cc/sec | 80 | 95 |
| Screw speed | rpm | 300 | 300 |
| Nozzle force | Tons | 3.6 | 3.6 |
Hydraulic ejector | Option A | Option B | |
|---|---|---|---|
| Specification | Unit | 32 mm | 35 mm |
| Ejector stroke | mm | 85 | 85 |
| Ejector force | Tons | 3.6 | 3.6 |
Locking unit | Option A | Option B | |
|---|---|---|---|
| Specification | Unit | 32 mm | 35 mm |
| Mould clamping force | Tons | 100 | 100 |
| Mould clamping stroke | mm | 300 | 300 |
| Mould thickness (min – max) | mm | 165 – 400 | 165 – 400 |
| Max. daylight opening | mm | 700 | 700 |
| Space between tie bars (H × V) | mm | 376 × 344 | 376 × 344 |
| Platen size | mm | 590 × 570 | 590 × 570 |
General | Option A | Option B | |
|---|---|---|---|
| Specification | Unit | 32 mm | 35 mm |
| Servo motor | kW | 10.5 | 10.5 |
| Heating capacity | kW | 8 | 8 |
| Total connected load | kW | 18.5 | 18.5 |
| Tank capacity | Litres | 260 | 260 |
| Machine weight | Tons | 3.5 | 3.5 |
| Floor space (L × W × H) | m | 4.2 × 1.25 × 1.75 | 4.2 × 1.25 × 1.75 |
Key Features
- Clamping stroke of 300 mm and 700 mm daylight opening for moulds 165 to 400 mm thick
- Two screw options: the 32 mm screw reaches 2,010 kg/cm² injection pressure and the 35 mm screw gives shots up to 151 g (PS)
- Tie-bar space of 376 × 344 mm and platens of 590 × 570 mm
- Hydraulic ejector with 85 mm stroke and 3.6 tons force
- Servo motor of 10.5 kW, with a total connected load of 18.5 kW
- User-friendly controls for setting, monitoring and running the cycle
Applications
The E Series 100 Ton is commonly used for small and medium components that need a slightly larger mould or shot than a 75 ton machine allows.
Modular switch and socket plates
- Image to be provided by client
Pipe fittings and plumbing parts
- Image to be provided by client
Cosmetic jars and caps
- Image to be provided by client
Toy parts
Small household products
- Image to be provided by client
Electrical accessories and connectors

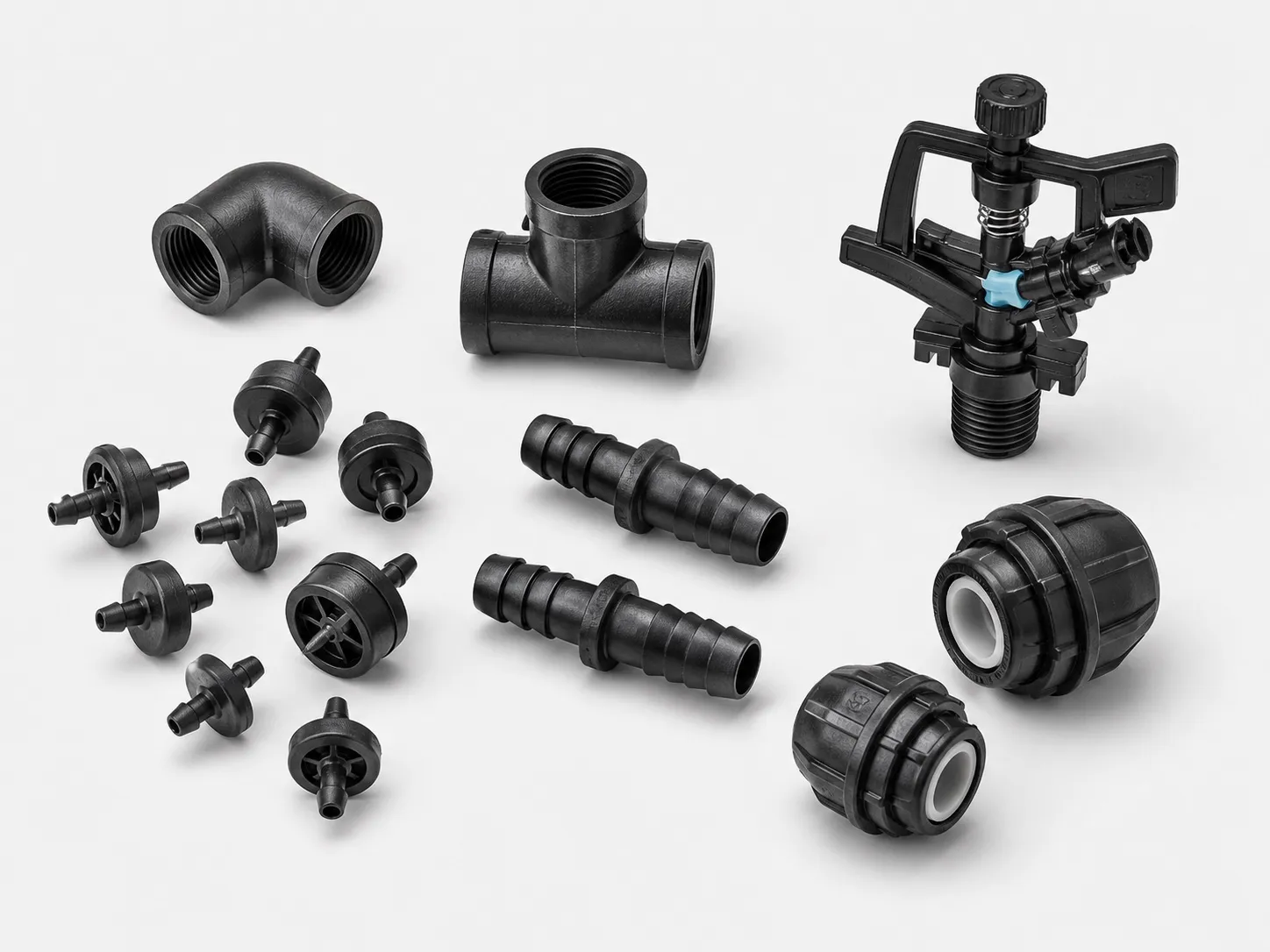

Agricultural and irrigation fittings
Other E Series Models
- 75 TonE-75Screw optionsØ27 · Ø32Shot weight82 – 116 gView specs →
- 125 TonE-125Screw optionsØ35 · Ø38Shot weight151 – 178 gView specs →
- 150 TonE-150Screw optionsØ35 · Ø38 · Ø40Shot weight186 – 243 gView specs →
- 165 TonE-165Screw optionsØ40 · Ø45Shot weight249 – 315 gView specs →
- 180 TonE-180Screw optionsØ40 · Ø45Shot weight249 – 315 gView specs →
Need a Different Tonnage?
Compare the full E Series range from 75 to 180 tons and get a suitable recommendation.
Why Choose Pratishna Engineers?
- Application-Based Machine Selection
- In-House Engineering & Manufacturing
- Multiple Machine Series
- Production-Focused Solutions
- End-to-End Technical Support
- Industry-Specific Solutions
- Machine Lifecycle Support
Injection Moulding Machine Buyer Resources
Download practical resources to help you select, size and specify the right machine.
E Series 100 Ton Specification Sheet
The full E Series 100 Ton data for each screw option: screw diameter, shot weight, injection pressure and rate, clamping stroke, mould thickness, daylight, tie-bar space, platen size, ejector, motor power, weight and floor space.
Download PDFPDF · 79 KB- Image to be provided by client
E Series Catalogue
The E Series range from 75 to 180 tons, with model and screw options, main features and applications.
Download PDFPDF · 2.9 MB
Clamping Force & Shot-Size Calculation Guide
A clear method for calculating the clamping force and shot size your part needs, covering projected area, injection pressure, safety factor, number of cavities, part and runner weight, and material.
Download PDFPDF · 363 KB
FAQs / Buyer Questions
The answers our engineers give most often about the 100 Ton, before a specification is agreed.
What Is the E Series 100 Ton Injection Moulding Machine?
It is a horizontal plastic injection moulding machine from Pratishna Engineers, built for small and medium components such as electrical accessories, fittings, cosmetic and household parts.What Can I Manufacture on a 100 Ton Machine?
Typical parts include modular switch and socket plates, pipe fittings and plumbing parts, cosmetic jars and caps, toy parts and small household products.How Do I Know if 100 Ton Is Enough for My Part?
Required clamping force depends on the projected area, injection pressure, material and cavities, with a safety factor. Share your part and mould details and Pratishna Engineers will confirm whether the 100 Ton is suitable.What Are the Screw Options on the E Series 100 Ton?
The 100 Ton is available with two screws: the 32 mm screw gives a 126 g shot at up to 2,010 kg/cm²; the 35 mm screw gives a 151 g shot at up to 1,680 kg/cm². Clamping, ejector and general specifications are common to all screw options.What Mould Size Fits the 100 Ton?
The 100 Ton takes moulds 165 to 400 mm thick within a tie-bar space of 376 × 344 mm, on platens of 590 × 570 mm, with a 700 mm daylight opening.
What Plastic Materials Can the 100 Ton Machine Process?
Depending on configuration, it can process thermoplastics such as PP, PE, ABS, PS, nylon, PC, POM and other engineering plastics.If 100 Ton Is Not the Right Size, What Other Options Are There?
The E Series also offers 75 Ton, 125 Ton, 150 Ton, 165 Ton and 180 Ton models, and higher tonnages are available in the C and H Series.Does Pratishna Provide Installation and After-Sales Support?
Yes. Installation, commissioning, operator training, spare parts and after-sales technical support are provided as part of Pratishna’s machine lifecycle services.How Do I Get a Price for the E Series 100 Ton?
Share your product, material, component weight, mould dimensions, cavities, production quantity and cycle time, and Pratishna Engineers will evaluate the configuration and provide a quotation.
Related Blogs, Guides & Articles
100 Ton Injection Moulding Machine Running Costs: Power, Cycle and Output
Work out injection moulding machine running cost per part from power draw, cycle time and good-shot rate, with kWh per kg benchmarks and kVAh billing.
100 Ton Machine for Switch Plates and Electrical Accessories
How to size a switch plate making machine: clamp force per cavity, drying flame-retardant PC, wall thickness and flame ratings, and IS 3854 certification.
Choosing Between the 32 mm and 35 mm Screw on a 100 Ton Machine
How injection moulding screw diameter trades melt pressure for shot volume, with barrel-use limits, melt densities and a worked 32 mm vs 35 mm example.

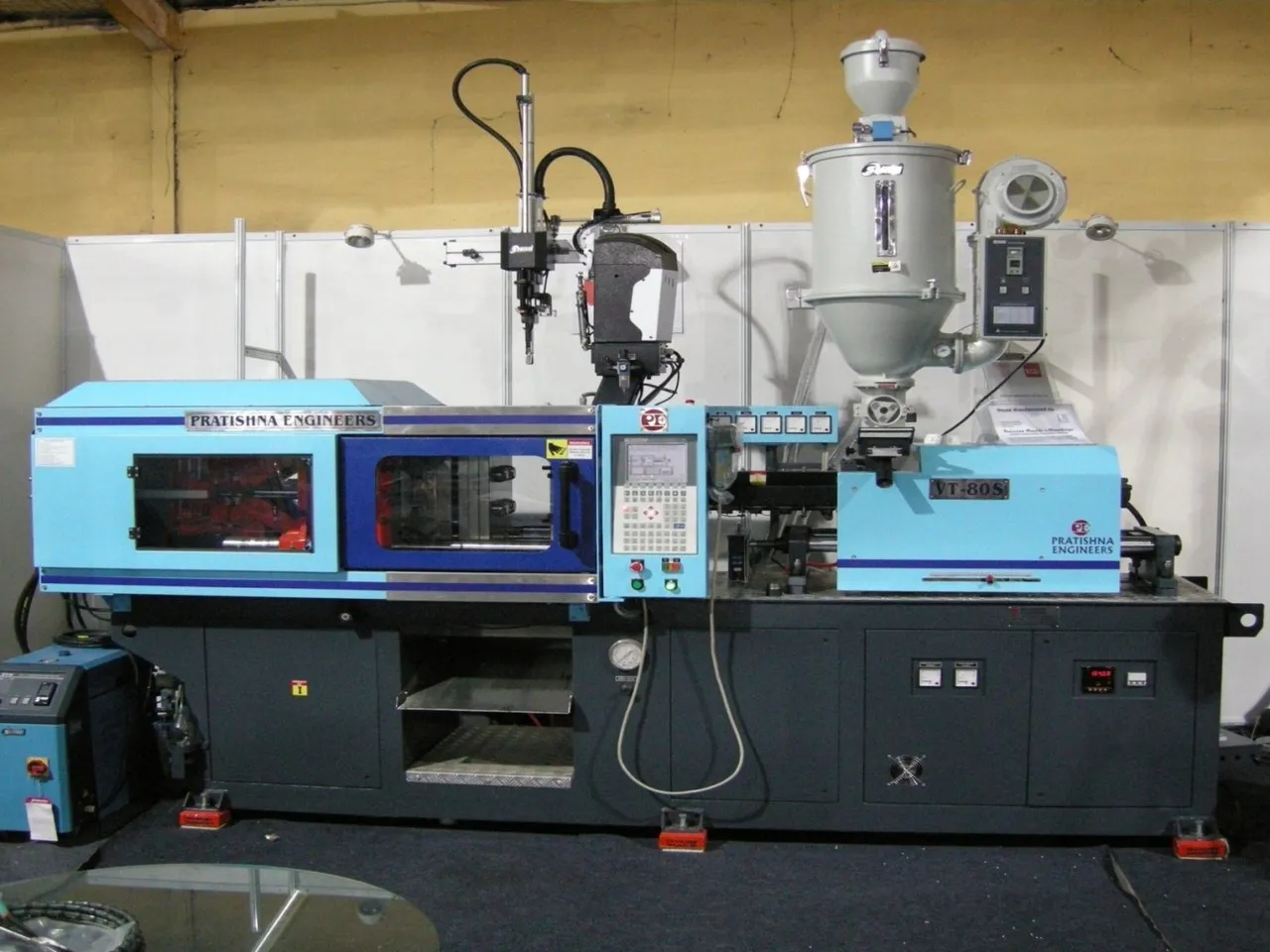

What Can You Make on a 100 Ton Injection Moulding Machine?
